Cerussite

PbCO3

Specimens from Tiger AZ

University of Cincinnati Mineral Collection

(Click images to enlarge)

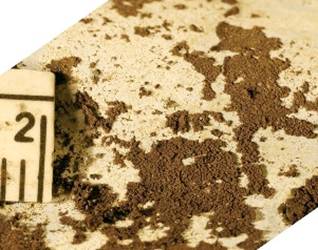

Transmitted light photomicrograph (Keyence VHX 600E)

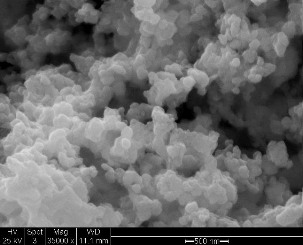

Scanning Electron Microscope image (FEI 30 XL ESEM)



Crystal System

Specific gravity

Hardness

Color

Orthorhombic

6.58

3 - 3½

Colorless, white, gray

Composition

Formula weight = 267.21 g/mole





Pb

77.54 %

PbO

83.53 %





C

  4.49

CO2

16.47





O

17.96









Web resources:

http://webmineral.com/data/Cerussite.shtml



  http://www.mindat.org/min-934.html



From the Latin, cerussa, meaning "white lead."

Note: spelling is cerrusite in minteq database of PHREEQC



  Cerussite in water distribution systems



Utility 06. Cerussite (white) with a thin overlay of plattnerite (brown)





Scanning Electron Microscope image of cerussite (FEI XL 30 ESEM)

Scanning Electron Microscope image nanno-scale cerussite (FEI XL 30 ESEM)
